Soda Blasting Carbs and Other Nasty Parts
Old 12-29-2011, 01:49 PM   #1
BaldEagle
SROC President

BaldEagle's Avatar

BaldEagle is Offline
Join Date: Oct 2010
Location: Memphis, TN
Posts: 6,545
Soda Blasting Carbs and Other Nasty Parts

So I got my '96 VLX Project and wow it was nasty. The previous owner should be beaten for letting it get in this bad of shape, but thanks to him you now will learn how to easily clean some parts. Thanks to Mine20 for suggesting this process. I did a little research and have to say that this is GREAT!

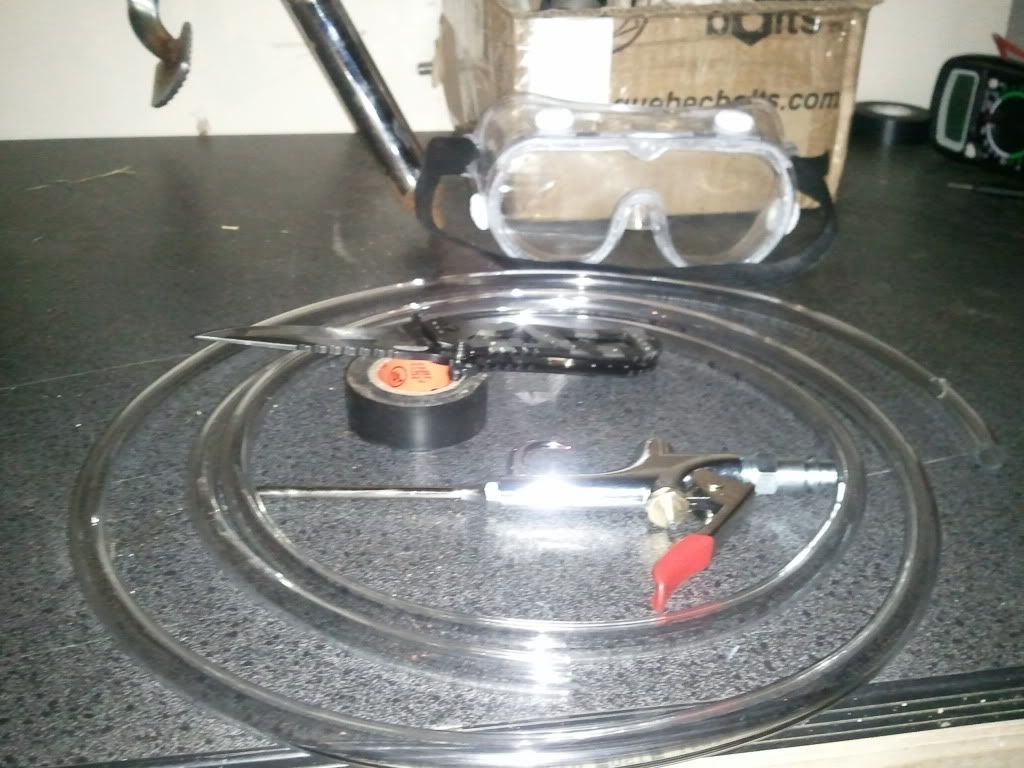

Tools/Materials Required:
Air Gun Attachment ($7.99-Harbor Frieght)
3-5' of 7/16" Hose ($0.27 per foot-Lowes)
Box Knife
Electrical Tape
Dowel/Rod 8-10"
***The only obstacle to this method***
Air compressor-At least 20-25 gallon that can handle the constant air spray
Baking Soda ($1.17 for large box-Wal-Mart)
You can purchase baking soda in bulk from Costco or Sam's, but I do not have a membership for either. You can also purchase bulk quantities from pool supply stores, but did not have time to get to one so I used the boxes from Wally World.

*Safety gear such as goggles, dust mask and clothes that you are not about to go on a Saturday Night date. The cloths will wash, it's freaking baking soda...they may be more fresh than any of your other laundry to dirty pig!



How to make the gun...
Step 1
Measure 2" from one end of the hose and cut a small hole to insert air gun needle


Step 2
Insert needle and tape hole sealing the hole and securing the gun to the hose. I taped the hose to the guy on down to help secure the hose so I did not have to wrestle with it. This creates the venturi suction effect to pull the soda from the container.


Step 3
Tape the rod/dowel to the other end of the hose to keep it from curling up in the container.

Step 4
Get to CLEANING!!!

Here are some before pics of my carbs...


Inside the bowls...


The other one was worse!


After a little blasting...




After blasting you will need to do a warm water rinse and blow off/out the water with the air gun (no soda this time dummy) and they will be good as new and no residue!

Here is the front brake caliper before...


After...


Good luck, now get that nasty bike clean you dirty rascal you!
__________________

www.baldeaglecustoms.com

Then the prophet Isaiah called on the LORD, and the LORD made the
SHADOW... 2 Kings 20:11
Okay, I know it's a little out of context, but still we have proof that God cr
eated the Shadow!!!

  Reply With Quote

Old 12-29-2011, 01:52 PM   #2
BaldEagle
SROC President

BaldEagle's Avatar

BaldEagle is Offline
Join Date: Oct 2010
Location: Memphis, TN
Posts: 6,545
I cleaned the rear break drum as well and while cleaning I noticed that it completely knocked off the surface rust from the break arm. I will be cleaning the front wheels and was planning on painting, but before I do I will soda blast and see how much surface rust it removes and report back.
__________________

www.baldeaglecustoms.com

Then the prophet Isaiah called on the LORD, and the LORD made the
SHADOW... 2 Kings 20:11
Okay, I know it's a little out of context, but still we have proof that God cr
eated the Shadow!!!

  Reply With Quote

Old 12-29-2011, 08:15 PM   #3
ahjort
ROAD SCHOLAR

ahjort's Avatar

ahjort is Offline
Join Date: Jun 2009
Location: central NY
Posts: 2,858
Looks like a winner! That MINE dude is on pretty fart smeller, I mean smart feller!!
Keep us posted on the wheels!
  Reply With Quote

Old 12-29-2011, 08:30 PM   #4
BaldEagle
SROC President

BaldEagle's Avatar

BaldEagle is Offline
Join Date: Oct 2010
Location: Memphis, TN
Posts: 6,545
Wife unit just accused me of buying new carbs, she said there is no way those are the same ones...lol!
__________________

www.baldeaglecustoms.com

Then the prophet Isaiah called on the LORD, and the LORD made the
SHADOW... 2 Kings 20:11
Okay, I know it's a little out of context, but still we have proof that God cr
eated the Shadow!!!

  Reply With Quote

Old 12-29-2011, 10:17 PM   #5
Poseidon
Shadow Rider

Poseidon's Avatar

Poseidon is Offline
Join Date: Mar 2011
Location: Suffolk, VA
Posts: 473
I'm impressed. Im going to have to keep this one in the back of my mind. Great post.
__________________
To ride is to live, a freedom only the soul can appreciate.


In Memory of the Cruffler
  Reply With Quote

Old 12-29-2011, 10:50 PM   #6
Mine20
Honda/Kawi whore

Mine20's Avatar

Mine20 is Offline
Join Date: Mar 2010
Location: The Alamo City
Posts: 1,495
Looks GREAT Bryon!! Im glad it all worked out. Not bad for under $10. I found this on the Kawasaki forum I'm on. Great process, über cheap (if you have a compressor already.) I can't get over how clean yours came out. Of the several posts I've read and videos I've seen I have never seen them that clean.

Ahjort - sniff sniff bro. Lmao!!!!
__________________
No matter what your username is, I will find a way to shorten it down.
EX: BaldEagle=BE



  Reply With Quote

Old 12-29-2011, 10:54 PM   #7
Mine20
Honda/Kawi whore

Mine20's Avatar

Mine20 is Offline
Join Date: Mar 2010
Location: The Alamo City
Posts: 1,495
You keeping the wheels? Try blasting the spokes.
__________________
No matter what your username is, I will find a way to shorten it down.
EX: BaldEagle=BE



  Reply With Quote

Old 12-30-2011, 06:20 PM   #8
tclemens
Shadow God

tclemens's Avatar

tclemens is Offline
Join Date: Jul 2009
Location: Shepherdsville Ky
Posts: 812
That is fuckin awesome im realy impressed
__________________
SROC


R.I.P. Cruffler
  Reply With Quote

Old 01-09-2012, 03:09 PM   #9
03ACE
Shadow God

03ACE's Avatar

03ACE is Offline
Join Date: Jun 2011
Location: Knoxville, TN
Posts: 1,349
I saw this somewhere too, and it works awesome, especially on aluminum!
__________________


Mods:
Drilled stock exhaust (1" holesaw)
Uni PK-82 pod filters
DynoJet Stage 1 jet kit - 130/132 mains
Scootmods forwards
Saddlemen Profiler seat
38T sprocket
4* timing mod
EBC CSK28 clutch springs
  Reply With Quote

Old 05-29-2013, 12:10 AM   #10
Irish78
Noob

Irish78's Avatar

Irish78 is Offline
Join Date: May 2013
Location: OKC, OK
Posts: 7
That's amazing. :-D
